Plate and Frame Filter Press vs. Recessed Chamber Filter Press

Understanding Filter Press Technology

Filter presses are essential equipment in numerous industrial processes. Their primary function is to separate solids from liquids through pressure filtration. By employing a series of plates and filter cloths or recessed chambers, these presses create an environment in which the slurry is forced through a filtering medium, leaving behind a filter cake and clear filtrate. Our in-depth evaluation highlights the engineering precision and adaptability of these technologies, ensuring that businesses can optimize throughput, reduce downtime, and meet stringent environmental standards.

Plate and Frame Filter Press: Detailed Analysis

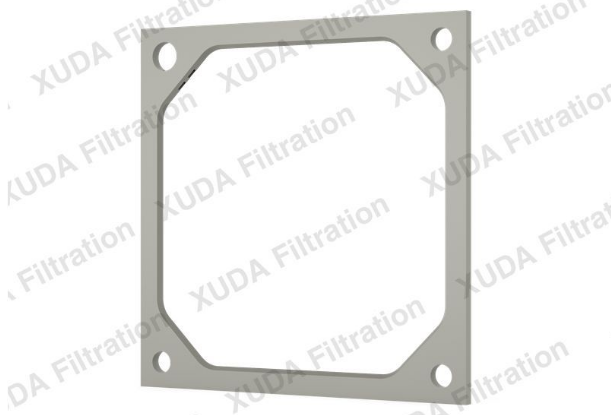

The Plate and Frame Filter Press is one of the most widely used filtration systems in the industry due to its robust design and versatility. Its construction comprises multiple plates and frames arranged alternately, with each pair enclosing a filter cloth. The following points encapsulate the key features:

- Design and Construction: The plates are typically made of high-strength materials such as stainless steel or reinforced polymers. Their design allows for efficient pressure distribution, which is crucial for the uniform separation of solids from liquids. The frames, on the other hand, provide structural integrity and support for the filter cloths.

- Operational Efficiency: One of the major advantages of this system is its adaptability. The modular design allows for easy scalability, making it suitable for both small-scale operations and large industrial facilities. Maintenance is straightforward; the plates can be easily disassembled for cleaning or replacement of the filter media. This contributes to reduced downtime and improved operational continuity.

- Versatility in Applications: Plate and Frame Filter Presses are often used in applications where high precision is required, such as in the food and beverage industry, pharmaceuticals, and chemical manufacturing. Their ability to handle a wide range of slurry viscosities and particle sizes makes them indispensable in scenarios where product purity and process consistency are critical.

- Economic Considerations: The initial investment and operational costs are balanced by the system’s longevity and ease of maintenance. For companies looking to optimize cost while ensuring high performance, the Plate and Frame Filter Press offers an attractive solution.

Recessed Chamber Filter Press: In-depth Look

In contrast, the Recessed Chamber Filter Press represents a more modern approach to pressure filtration. This design integrates recessed chambers within each filter plate, where the filter cloth is bonded directly to the plate. This configuration delivers several unique advantages:

- Innovative Design Features: The recessed chamber design minimizes the dead volume within the press, enhancing the overall filtration efficiency. This innovation allows for improved filtration performance, as the liquid is forced directly into the chambers, thereby maximizing the contact with the filter medium.

- Enhanced Filtration Efficiency: The direct bonding of the filter media to the plates eliminates the need for additional clamping or frame structures. This results in a reduction of potential leakage points and ensures a more uniform pressure distribution across the entire filter surface. For industries that demand high-quality filtrate and low moisture content in the filter cake, the Recessed Chamber Filter Press provides superior performance.

- Operational Flexibility: While the design is more specialized, it offers enhanced operational consistency. The integration of advanced sealing technologies ensures that the filtration process remains robust even under varying operating pressures and temperatures. This adaptability is crucial for processes that require precise control over the filtration cycle.

- Maintenance and Reliability: Although the initial setup of a Recessed Chamber Filter Press may require higher technical expertise, the benefits include reduced maintenance cycles and longer intervals between required shutdowns. The simplification of the assembly minimizes the number of moving parts, thereby decreasing the likelihood of mechanical failure.

Comparative Analysis: Performance, Efficiency, and Cost

When comparing the Plate and Frame Filter Press with the Recessed Chamber Filter Press, several key performance indicators emerge:

- Filtration Efficiency: Both systems are engineered to deliver high-quality separation. However, the Recessed Chamber design typically excels in applications requiring low moisture content in the cake and a high-quality filtrate, thanks to its innovative design that minimizes dead space. Conversely, the Plate and Frame system provides robust performance across a broader range of applications, particularly when flexibility and ease of maintenance are prioritized.

- Operational Costs and Maintenance: From an economic perspective, the Plate and Frame Filter Press offers significant advantages in terms of ease of maintenance and lower initial costs. The modular design enables quick repairs and part replacements. Meanwhile, the Recessed Chamber Filter Press, though potentially more expensive upfront, offers longer maintenance intervals and reduced labor costs over time due to its simplified design and enhanced sealing capabilities.

- Scalability and Versatility: The modular nature of the Plate and Frame system makes it highly adaptable for various plant sizes and operational scales. It can be customized with different plate sizes and filter media configurations to meet specific requirements. The Recessed Chamber system, while more specialized, is best suited for processes that benefit from its enhanced sealing and filtration performance. Our analysis suggests that for industries prioritizing adaptability, the Plate and Frame option is often preferable, whereas for applications requiring ultra-high performance, the Recessed Chamber technology stands out.

- Energy Consumption: Energy efficiency is an increasingly important factor in industrial operations. Both systems have been engineered to minimize energy usage during operation. The Recessed Chamber Filter Press often demonstrates a slight edge in this regard due to its streamlined design that reduces the overall pressure drop across the filter media, thus lowering the energy required for operation.

Operational Considerations and Maintenance

In any industrial setting, maintenance and operational consistency are as critical as the initial performance specifications. We recommend that operators consider the following factors when selecting a filter press:

- Ease of Cleaning: Regular maintenance and cleaning are essential to prevent clogging and ensure consistent performance. Plate and Frame systems offer ease of disassembly, which allows for thorough cleaning and rapid filter cloth replacement. In contrast, while Recessed Chamber systems have a more integrated design, they often incorporate advanced cleaning technologies that reduce manual intervention.

- System Downtime: Minimizing downtime is crucial for maintaining production efficiency. The simplicity and modularity of Plate and Frame Filter Presses often translate to faster maintenance procedures. Recessed Chamber presses, despite requiring less frequent maintenance, may involve longer downtimes when servicing is necessary due to their integrated construction.

Industry Applications

Both types of filter presses play pivotal roles across various industries. In sectors such as mining, wastewater treatment, and chemical manufacturing, the need for efficient solid-liquid separation is a constant challenge. Plate and Frame Filter Presses have traditionally dominated due to their versatility and ease of maintenance. However, with the advent of more stringent environmental regulations and the demand for higher quality filtrate, Recessed Chamber Filter Presses are gaining traction.

- Mining and Minerals Processing: In mining operations, the quality of the filter cake is paramount for subsequent processing steps. Here, the precision offered by Recessed Chamber systems can significantly improve downstream processes, ensuring that the extracted minerals meet the required purity levels.

- Chemical and Pharmaceutical Industries: In processes where product purity is critical, the enhanced sealing and reduced risk of contamination in Recessed Chamber Filter Presses are highly beneficial. This technology ensures that sensitive compounds are processed in a controlled environment, preserving the integrity of the final product.

- Wastewater Treatment: Effective wastewater treatment demands reliable and efficient removal of suspended solids. Both filter press technologies are extensively used in this field, with Plate and Frame systems offering adaptability and Recessed Chamber presses providing superior performance in terms of residual moisture reduction.

Conclusion

In summary, both the Plate and Frame Filter Press and the Recessed Chamber Filter Press offer distinct advantages that cater to different industrial needs. Our detailed comparison illustrates that while the Plate and Frame system remains a robust and versatile choice for a wide range of applications, the Recessed Chamber design stands out for its enhanced sealing, superior filtration efficiency, and energy savings. By carefully considering factors such as maintenance, scalability, and specific industry requirements, businesses can select the technology that best aligns with their operational goals and budget constraints.
